What makes plastic modular belt different from a flat-belt or slat-chain conveyor?

Plastic modular belt conveyors are built from interlocking thermoplastic modules, not a single continuous belt or slat chain. Three things follow from this construction: the open-surface design allows full washdown cleaning with water passing through the belt (critical for food and meat processing), the belt can make multiple direction changes within one continuous path (unlike flat belts which need separate transfer units), and a damaged module can be replaced individually instead of replacing the whole belt.

How many surface materials are available, and how do I choose?

SANAM builds plastic modular belts in 9 surface material grades — including standard food-grade, heat-resistant (for hot or cold environments), acid-resistant (for chemical exposure), anti-static, flame-retardant, X-ray transparent (for inspection lines), impact-resistant (for sharp-edge products), antibacterial (for meat and poultry), and rough-surface (for sharp or heavy-edge products). SANAM engineers select the surface grade based on your product, line temperature, washdown frequency, and any compliance requirements you have.

Can it handle washdown cleaning and food contact?

Yes. The open-surface modular design is specifically engineered for daily washdown environments — water and cleaning solutions pass through the belt rather than pooling on top of it. SANAM uses food-grade thermoplastic modules approved for direct food contact, on stainless steel SS 304 frames. This makes the conveyor suitable for meat and poultry processing, slaughterhouse applications, dairy, bakery, and any line with strict hygiene requirements.

Can SANAM build curves and direction changes in one continuous belt?

Yes. Multi-directional turns in a single belt path is the core advantage of plastic modular belt over other conveyor types. SANAM builds straight runs, 90° elbows, 180° elbows, S-shape and Z-shape configurations all within one continuous belt — no transfer points, no separate turn units. The unique interlocking module design allows the belt to flex and turn while keeping product flow uninterrupted.

How long does it take from order to installation?

A custom-engineered plastic modular belt conveyor typically ships within weeks of order confirmation, not months. Because SANAM manufactures in Egypt, you avoid the multi-month lead times associated with imported European or Asian conveyor systems. We confirm a project timeline before contract signing, and the same SANAM team that built the conveyor handles installation and ongoing support.

Material Handling Conveyor

Plastic Modular
Belt Conveyor

An open-surface conveyor built from interlocking thermoplastic modules on a stainless steel SS 304 frame — engineered for multi-directional turns in a single continuous belt, full washdown cleaning, and product handling across food processing, packaging, bottling, automotive, and recycling lines.

Code MBC

Materials Thermoplastic / SS 304

Built Egypt — 10th of Ramadan

Open-Surface Washdown Multi-Directional Turns 9 Surface Materials

Request Quotation Technical Call

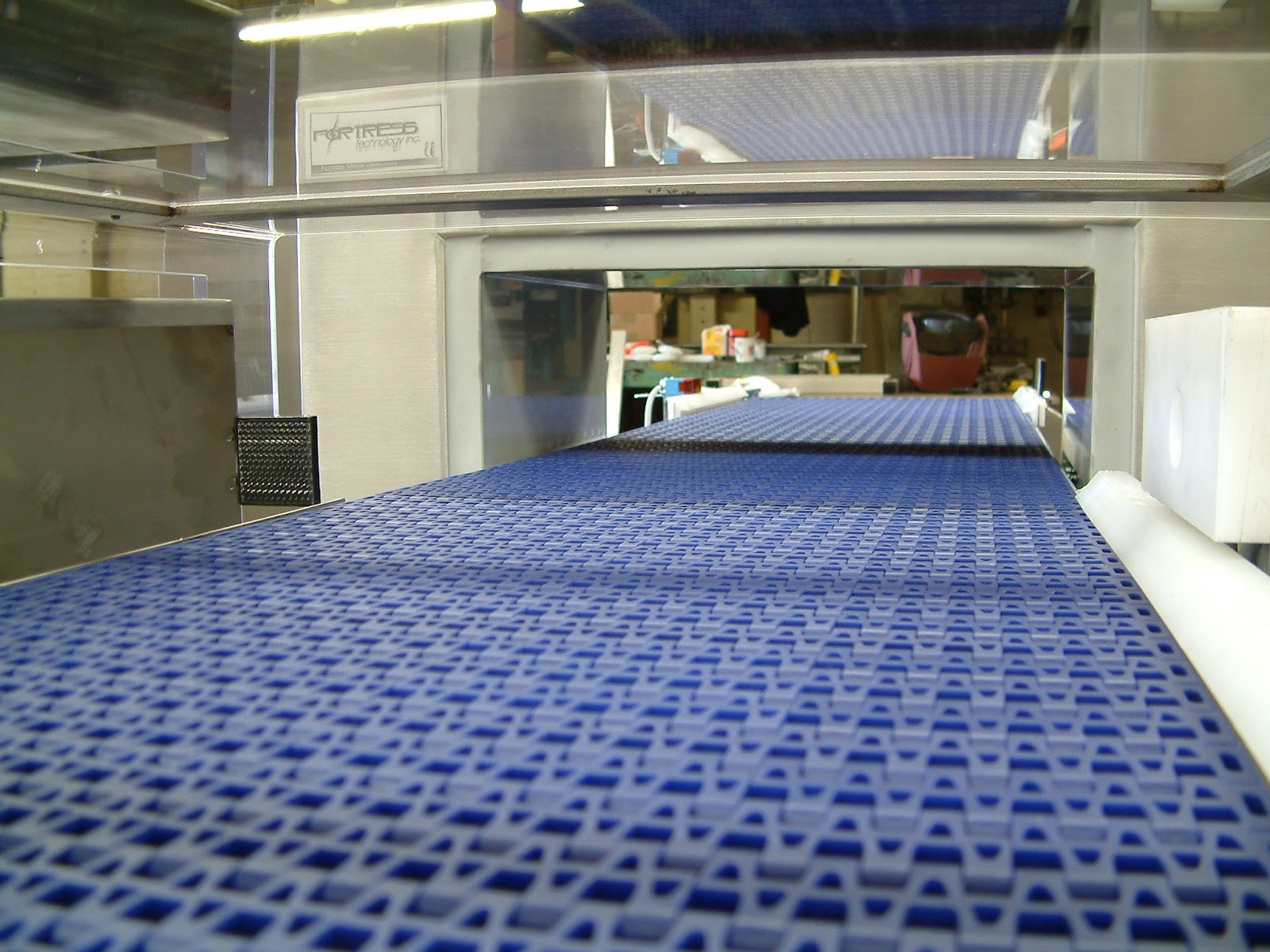

SANAM plastic modular belt conveyor — food processing and packaging line installation in Egypt

MBC · Plastic Modular

Key Features

What Makes the
Modular Belt
Different

Six things that set a SANAM-built plastic modular belt apart from a generic catalogue conveyor — every one of them a decision we make at the engineering desk before fabrication begins.

Open-Surface Washdown Design

The modular construction lets water and cleaning solutions pass through the belt — not pool on top of it. Critical for meat processing, slaughterhouses, dairy, and any line with daily washdown protocols.

Multi-Directional Turns in One Belt

Unlike flat-belt conveyors that need separate turn units, the modular belt flexes through 90° elbows, 180° elbows, S-shapes, Z-shapes, and elevation changes — all in one continuous path with no transfer points. The positive-drive interlock between modules also eliminates belt slippage and mis-tracking that plague friction-driven belts.

9 Surface Materials to Match Your Product

Standard food-grade, heat-resistant for hot or cold environments, acid-resistant, anti-static, flame-retardant, X-ray transparent, impact-resistant, antibacterial, and rough-surface — SANAM picks the right one for your product, temperature range, and washdown frequency.

Module-by-Module Maintenance

When a section of belt is damaged, you replace one module — not the entire belt. Cuts maintenance downtime, reduces spare-part costs, and means a single damaged area never takes the whole line offline. The smooth thermoplastic surface is also gentle on product — no marking on printed packaging, no scuffs on glass or PET.

Built to Your Width and Length

Modules assemble to your exact width and length specification — narrow runs for small packages and bottles, wide runs for crates, cartons, and bulk products. The belt fits your floor plan instead of forcing you to fit the catalogue.

Integrates With Your Production Line

Engineered to match the speed, height, and transfer points of your existing fillers, packers, processing equipment, and palletizers — the conveyor becomes part of the line, not a separate system.

Configurations

Six Standard Layouts — Each Built to Your Plant

The modular belt handles every common direction change in a single continuous run — no transfer points between shapes. Combine multiple configurations into one belt when your floor plan calls for it.

Elbow 90°

Right-angle direction change in a single continuous belt — no transfer station needed. Common in plant layouts where floor space is tight.

Elbow 180°

Full U-turn in one continuous modular belt — product travels out and returns on a parallel path. Ideal for layouts where receiving and discharge stations sit on the same wall.

Horizontal

Standard straight run between stations — the base layout that anchors every modular belt installation.

Inclined

Elevation change — lifts product between floors or onto a higher transfer point. Friction-top modules or transverse cleats (flights) prevent product slip on steep inclines.

S-Shape

Two opposing curves in one continuous belt — used to bypass a column, machine, or wall, or to shift the production line laterally without breaking flow.

Z-Shape

Sharp diagonal segment between two horizontal runs — common when raising or lowering line height between adjacent machines.

Industries Served

Where the Modular Belt Earns Its Place

Six industries where the plastic modular belt is the right tool for the job — from wash-down food processing to heavy industrial recycling.

Meat, Poultry & Seafood

Open-surface belt handles full washdown — the safe choice for raw meat, poultry, fish, and slaughterhouse production lines.

Bakery, Snacks & Produce

Bread, biscuits, chips, fruits, and vegetables move on antibacterial food-grade surfaces from ovens to cooling tunnels to packaging stations.

Beverage & Bottling

Mineral water, soft drinks, juices — PET and glass bottles transit through carbonators, fillers, labelers, and can-filling lines.

Automotive & Tire

Heavy-duty modular belts move tires, batteries, and parts through assembly and palletizing — proven on the German Battery project.

Packaging Industries

Glass, paper, cartons, metal cans, and tin containers — the belt handles every common rigid-package shape across packaging plants.

Recycling & Waste

Impact-resistant modular surfaces transport scrap, sorted recyclables, and waste through processing facilities under heavy mechanical load.

Why SANAM

The Conveyor Is Half
the Story. The Team Behind It
Is the Other Half.

Anyone can sell you a conveyor. The question is who picks up the phone six months later when a chain segment fails on a Sunday night.

Egyptian OEM, Not Importer

The conveyor is designed, fabricated, and assembled in our 10th of Ramadan facility — by the same team that installs and supports it. No middleman, no resold equipment, no relabeled imports.

Custom-Engineered to Your Line

We design around your factory floor, your existing fillers and packers, and your container specs. We don't sell standard parts hoping they fit — we design for your line.

Spare Parts in Egypt, in 48 Hours

Spares are typically available within 48 hours from our Egyptian inventory — no import waits, no customs delays, no production downtime while you wait for a chain segment from Europe.

Full System Integration

We don't just supply a conveyor. We connect it to your existing line — matching speed, height, and transfer geometry to your fillers, cappers, labelers, and packers. The line becomes one system, not a stack of disconnected machines.

Get a Quote

Tell Us About
Your Line.

Send us your container type, throughput target, and a sketch or photo of your factory layout if you have one. A SANAM engineer responds within one working day with a scoped technical proposal — no salesperson handoff.

Request QuotationPricing for your specific line

Technical ConsultationTalk to an engineer about your application

Site VisitA SANAM engineer visits your factory

What Happens Next

We review your request within one working day.
An engineer calls you to scope your line and answer questions.
You receive a written proposal with technical details and a budgetary figure.
