What is a chute conveyor and when do I need one?

A chute conveyor is a gravity-driven downfeed - a polished slide surface inclined at an engineered angle (typically 20-45 degrees) that lets products slide from an upper level to a lower level under their own weight, without a motor, electricity, or any ongoing operating cost. The catalog states the value directly: بفعل الوزن - by the force of weight. You need a chute conveyor any time the line has a downward elevation change and you want the cheapest, most reliable way to move product through it: parcel sortation drops in distribution centers, mailroom routing, finished cartons descending from a packaging mezzanine to an outbound floor, scrap and reject diversion off an assembly line, and gentle product transfers between processing levels in food and pharma plants.

Straight vs spiral chute - which configuration should I choose?

Straight chutes are linear inclined slides - simplest, lowest cost, easiest to install, but they need horizontal floor space proportional to the height drop. Best where floor space is available and the drop is modest. Spiral or helical chutes wind around a central axis - the entire vertical drop fits inside a footprint roughly the size of the chute diameter itself. Best where the drop is significant (multi-floor) and floor space is scarce. The spiral form does cost more to fabricate than a straight chute, but the floor space saved usually justifies the cost in multi-floor distribution operations. SANAM specifies the right configuration based on your drop height, available footprint, and product flow rate.

Will gravity actually work for my product? What about friction and flow control?

Gravity works reliably for most packaged unit loads - cartons, totes, bagged products, individual parts, parcels - as long as the chute incline angle, surface friction, and product geometry are matched correctly. SANAM specifies the incline angle to balance two opposing concerns: too shallow and product gets stuck; too steep and product accelerates uncontrollably, risking damage on landing. Friction inserts, baffles, speed reducers, and surface texturing can be engineered into the chute for fragile or high-value products that need controlled descent. For products that genuinely will not flow under gravity (very light, sticky, irregular), a powered conveyor is the right alternative - we will tell you that during the engineering review.

Stainless steel or polymer construction - which is right for my chute?

Stainless steel SS 304 is the standard for food, beverage, and pharmaceutical applications where washdown, hygiene, and FDA-compliant materials matter - smooth, durable, easy to sanitize, handles heavier loads. SS 316 for aggressive cleaning chemistries. Polymer (typically food-grade UHMW or HDPE) is the standard for lighter goods and applications where gentle product handling matters more than load capacity - quieter, lower friction surface, easier on fragile items, lower cost per square meter than stainless. SANAM specifies the material based on your product, hygiene requirements, and load weight.

Do I need power, controls, or a PLC for a chute conveyor?

No - and that is the entire value of the chute conveyor. Zero motor, zero electrical connection, zero PLC, zero variable speed drive, zero ongoing electricity cost, zero motor maintenance schedule. Install it, align it with the upstream and downstream equipment heights, and it runs forever as long as products keep coming down. The only things to specify and maintain are the slide surface (clean it periodically), the incline angle (set at installation), and any friction inserts or baffles for fragile products. This is the lowest total cost of ownership of any conveyor in the SANAM catalog.

Material Handling Conveyor

Chute
Conveyor

The conveyor that runs on gravity — products slide from one level to another without a motor, without electricity, without ongoing operating cost. The catalog defines the value directly: بفعل الوزن (by the force of weight). Available in straight chute for linear inclines and spiral chute for compact vertical drops. Stainless steel for food and pharma, polymer for lighter goods. The lowest total cost of ownership of any conveyor we build.

Code GCC

Operation Gravity-Driven — No Power

Built Egypt — 10th of Ramadan

Zero Power Gravity-Driven Straight or Spiral

Request Quotation Technical Call

SANAM chute conveyor — gravity-driven downfeed in straight and spiral configurations for distribution, mailroom, food, and manufacturing drop-off operations installation in Egypt

GCC · Chute Conveyor

Key Features

What Makes a SANAM
Chute Conveyor
Different

Six things that set a SANAM-built chute conveyor apart from a generic imported slide — every one of them a decision we make at the engineering desk before fabrication begins.

Zero Power, Zero Operating Cost

The catalog says it directly: بفعل الوزن — by the force of weight. No motor, no electricity, no PLC, no electrical install, no electricity bill, no motor maintenance. The chute is the lowest total cost of ownership of any conveyor in the SANAM catalog.

Straight or Spiral — Two Geometries

Straight chute is a linear inclined slide — simplest, cheapest install, best where floor space is available. Spiral chute winds around a central axis so the entire drop fits in a footprint the size of the chute diameter — best for multi-floor drops where floor space is scarce. Pick straight for cost, spiral for footprint.

Stainless Steel or Polymer Construction

Stainless steel SS 304 for food, beverage, and pharma — washdown-ready, FDA-grade. SS 316 for aggressive cleaning. Polymer (UHMW or HDPE food-grade) for lighter goods and fragile items — easier on delicate products, lower cost than stainless. SANAM specifies the surface based on your product.

Adjustable Incline Angle — Engineered for Your Product

Incline angle controls everything: too shallow and product gets stuck; too steep and it accelerates uncontrollably. Typical range is 20-45 degrees depending on product weight, surface friction, and how gentle the descent must be. SANAM engineers the angle to your product — heavy carton, fragile bottle, polished metal part.

Friction Inserts & Speed Reducers for Fragile Products

Glass bottles, electronics, packaged pharma, e-commerce mixed loads — none of these can free-fall down a smooth chute without damage. Friction inserts (rubber or felt patches), baffles (small obstacles), and speed reducers (engineered restrictions) give controlled flow for fragile and high-value products. Retrofittable if your product mix changes.

Custom-Engineered to Your Product — Not a Catalog Box

Every chute SANAM builds is sized to the specific product — geometry, weight, fragility, drop height, upstream feeder height, downstream destination. Slide surface, incline angle, friction inserts, and frame are engineered to your operation. Send us the product spec and connection heights — we engineer the chute that drops in.

Configurations

Two Chute Geometries — Straight or Spiral

Both run on gravity — no power, no motor, no electricity bill — but they trade off footprint against fabrication cost differently. Straight is the cheapest and simplest; spiral fits the drop into a tighter footprint at higher fabrication cost. Pick based on your available floor space and drop height.

Straight Chute — Linear Incline

A straight inclined slide. Simplest geometry, lowest fabrication cost, easiest install, fastest delivery. The trade-off is horizontal floor space — for a 2-meter drop at a 30° incline, the chute occupies roughly 3.5 meters of horizontal floor. Best where the drop is moderate, floor space is available, and cost is the priority. Common in manufacturing drop-off stations, parcel sortation lanes, and reject removal off assembly lines.

Request Technical Data Sheet →

Spiral Chute — Compact Vertical Drop

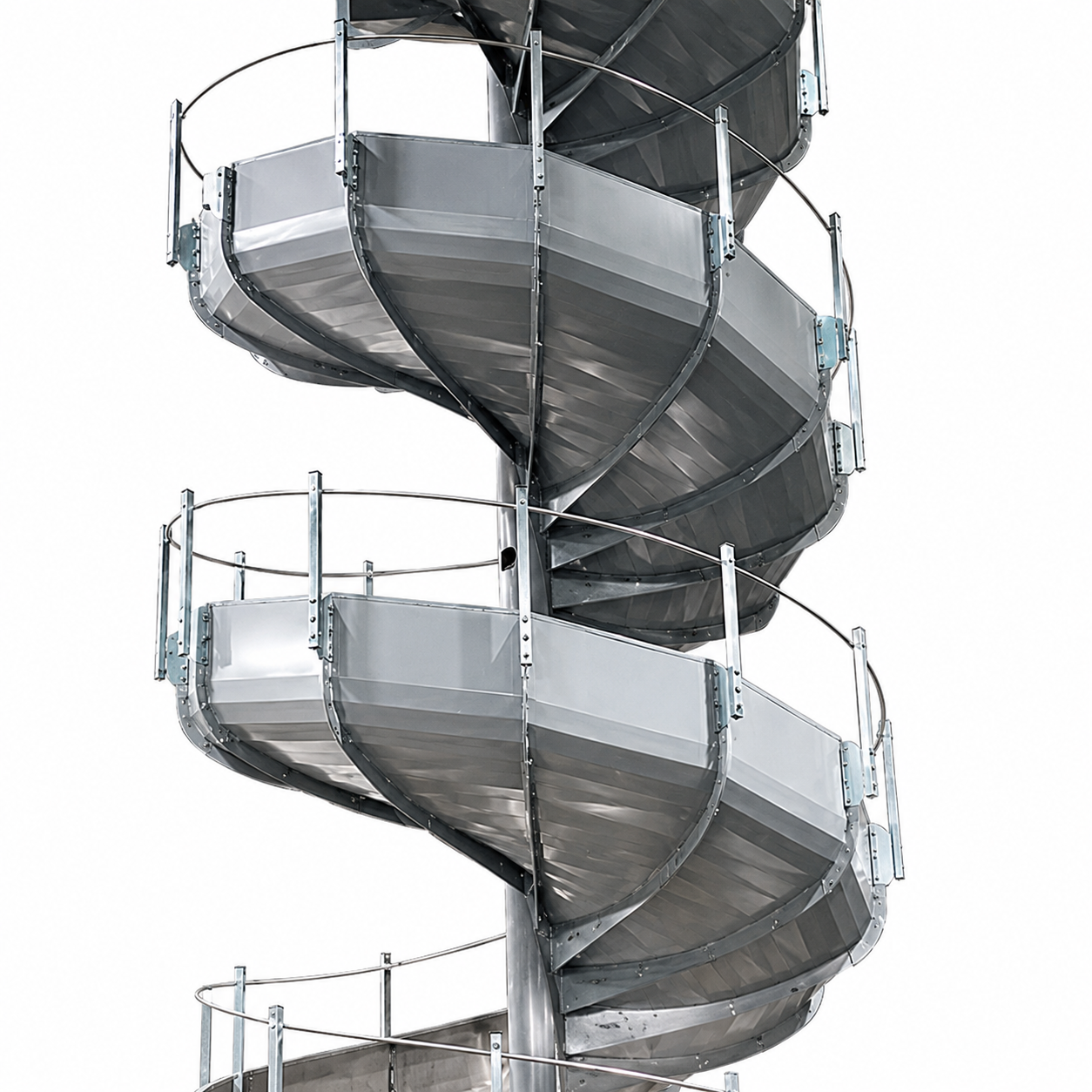

A helical slide wound around a central column. The entire vertical drop fits inside a footprint roughly the size of the chute's diameter — often 1 to 2 meters of floor for drops of 4-6 meters or more. Higher fabrication cost than straight (the helical surface is harder to make), but the floor space saved usually justifies it in multi-floor distribution, e-commerce fulfillment, and mailroom downfeed. The catalog photo specifically shows this configuration.

Request Technical Data Sheet →

Industries Served

Where the Chute Conveyor Earns Its Place

Six industries where the line has a downward elevation change — and where gravity is the right tool for the job. Cheapest installation, zero ongoing cost, and nothing to break.

Distribution & E-Commerce Fulfillment

Sortation drops where the sorter sends each parcel to its destination chute — orders to packing, returns to inspection. Gravity does the routing once the sorter decides.

Food & Beverage Processing

Gentle product transfer between mezzanine processing and ground-floor packing — bottles, cans, snack bags, produce. SS 304 for washdown, polymer for delicate items, friction inserts where landing matters.

Packaging & Carton Operations

Offcuts and rejects off carton presses, finished cartons descending from inspection mezzanine to shipping, scrap removal from cutting lines. Cheap, reliable, no power required.

Pharmaceutical & Cleanroom Transfer

Sealed pharma containers, blister packs, and finished cartons between clean processing levels and outer packaging. SS 316 for aggressive cleaning, no motor means no contamination source.

Mailroom & Parcel Sortation

The classic chute application — letters and parcels routing from upper-floor sorters to delivery bins below. One vertical drop, 6 to 16 destinations on the floor below. Zero motors, decades of service.

Manufacturing Drop-Off Stations

Finished parts dropping from assembly stations to packing crates, scrap routing from CNC machines to bins, sub-assemblies descending from upper deck to packaging. Every factory has these drops.

Why SANAM

The Conveyor Is Half
the Story. The Team Behind It
Is the Other Half.

Anyone can sell you a conveyor. The question is who picks up the phone six months later when a chain segment fails on a Sunday night.

Egyptian OEM, Not Importer

The conveyor is designed, fabricated, and assembled in our 10th of Ramadan facility — by the same team that installs and supports it. No middleman, no resold equipment, no relabeled imports.

Custom-Engineered to Your Line

We design around your factory floor, your existing fillers and packers, and your container specs. We don't sell standard parts hoping they fit — we design for your line.

Spare Parts in Egypt, in 48 Hours

Spares are typically available within 48 hours from our Egyptian inventory — no import waits, no customs delays, no production downtime while you wait for a chain segment from Europe.

Full System Integration

We don't just supply a conveyor. We connect it to your existing line — matching speed, height, and transfer geometry to your fillers, cappers, labelers, and packers. The line becomes one system, not a stack of disconnected machines.

Get a Quote

Tell Us About
Your Line.

Send us your container type, throughput target, and a sketch or photo of your factory layout if you have one. A SANAM engineer responds within one working day with a scoped technical proposal — no salesperson handoff.

Request QuotationPricing for your specific line

Technical ConsultationTalk to an engineer about your application

Site VisitA SANAM engineer visits your factory

What Happens Next

We review your request within one working day.
An engineer calls you to scope your line and answer questions.
You receive a written proposal with technical details and a budgetary figure.
