What is a vertical conveyor and when do I need one?

A vertical conveyor elevates or lowers unit loads - boxes, cartons, cases, totes, kegs, and pallets - between different levels of a production or storage system. You need one whenever your line crosses elevations and you cannot afford the floor space a sloped conveyor would require, or the labor and safety risk of using forklifts or scissor lifts to move product between floors. The vertical conveyor handles the transfer automatically, synchronized with your existing horizontal conveyor lines, in a fraction of the footprint a ramp would take. Common applications include moving product from a production floor up to a packaging mezzanine, between warehouse levels in multi-story distribution centers, and between processing and packaging zones at different elevations.

Continuous vs reciprocating vertical conveyor - which configuration should I choose?

Two configurations for two different throughput and load profiles. Continuous vertical conveyor (CVC) runs a series of carriers in a non-stop loop, accepting product from a horizontal infeed conveyor on one side and discharging onto a horizontal outfeed conveyor at the target elevation. Highest throughput - thousands of cases per hour - best for high-volume packaging and distribution lines moving lightweight to medium unit loads. Reciprocating vertical conveyor (RVC) cycles a platform up and down between elevations, loading and unloading at each end of the cycle. Lower throughput than CVC but handles heavier loads (pallets, drums, large unit loads up to several thousand kg), simpler mechanism, lower cost, and ideal for multi-level applications with moderate flow rates. SANAM specifies the right configuration based on your throughput, load weight, and number of elevation levels.

What loads and weights can the vertical conveyor handle?

Load capacity scales with the conveyor configuration and engineering. Continuous vertical conveyors typically handle boxes, cartons, cases, totes, kegs, and smaller unit loads in the 5 to 100 kg per carrier range, with throughput from a few hundred to several thousand units per hour. Reciprocating vertical conveyors handle heavier loads - single or multiple pallets, drums, large machinery, oversized cartons - typically in the 500 kg to 4,000 kg per cycle range, with some heavy-duty configurations rated up to 8,000 kg or more. SANAM sizes the structural frame, drive motor, carrier or platform, and safety interlocks to the actual load weight, dimensions, and cycle frequency your operation needs.

Does the vertical conveyor operate in both directions - up and down?

Yes - bidirectional operation is standard. The vertical conveyor lifts product from a lower level to an upper level and lowers product from an upper level to a lower level using the same equipment. Reciprocating models are bidirectional by nature - the platform cycles up and down. Continuous models can be configured for either upward or downward flow, or in some cases for product flow in both directions through the same shaft. SANAM engineers the direction of flow into the cell during the design phase based on your production layout.

How does the vertical conveyor integrate with my existing conveyor line?

Integration with your existing horizontal conveyor lines is the defining feature - the catalog explicitly calls out synchronization with other conveyor systems. The vertical conveyor accepts product from a horizontal infeed conveyor on one side at the lower elevation, lifts it (or lowers it) inside the vertical shaft, and discharges onto a horizontal outfeed conveyor at the target elevation. Standard infeed and outfeed configurations include C-flow (infeed and outfeed on the same side) and Z-flow (infeed and outfeed on opposite sides). The PLC controls coordinate carrier or platform timing with upstream conveyor speed so product flow is continuous and synchronized. SANAM engineers the mechanical and electrical interfaces to your existing line equipment as part of the standard scope.

Material Handling Conveyor

Vertical
Conveyor

The conveyor that takes your line vertical — a vertical conveyor that elevates or lowers boxes, cartons, cases, totes, and pallets between different levels of your production or storage system, synchronized with your horizontal conveyor lines. Available in continuous (CVC) for high-throughput packaging operations and reciprocating (RVC) for heavier pallet and unit loads. Steel or stainless steel construction. The right alternative when floor space is tight and you need elevation change without dedicating an entire ramp run to it.

Code VEC

Operation Continuous or Reciprocating

Built Egypt — 10th of Ramadan

Vertical Up + Down Space-Efficient Synchronizes with Lines

Request Quotation Technical Call

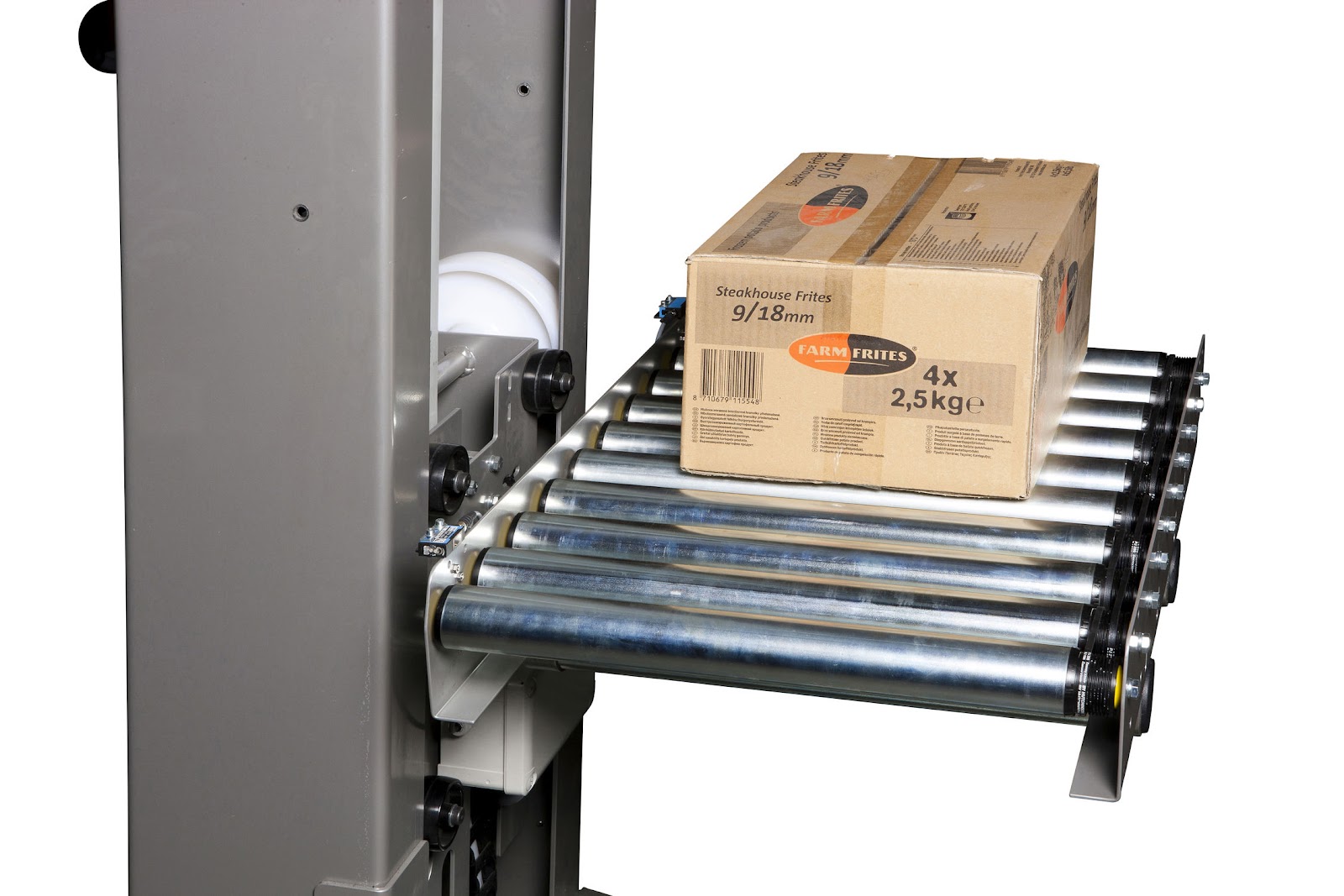

SANAM vertical conveyor — continuous and reciprocating vertical conveyor for boxes, cartons, cases, and pallets synchronized with horizontal conveyor lines installation in Egypt

VEC · Vertical Conveyor

Key Features

What Makes a SANAM
Vertical Conveyor
Different

Six things that set a SANAM-built vertical conveyor apart from a generic imported solution — every one of them a decision we make at the engineering desk before fabrication begins.

Vertical Up + Down — Bidirectional Operation

Lifts product up and lowers it down using the same equipment — bidirectional is standard, not an option. Reciprocating cycles a platform up and down by nature; continuous can be configured for either direction. One conveyor, one control system, both directions.

Space-Efficient Vertical Movement

A sloped conveyor needs horizontal floor several times the elevation change — a 4m rise on a 10° slope eats 23m of floor. A vertical conveyor lifts the same load in a footprint the size of the load itself. For multi-floor plants and mezzanine packaging, this is the only option that doesn't require redesigning the building.

Synchronizes with Your Existing Conveyor Lines

The defining catalog hook — it works as a cell inside your line, not a standalone lift. Accepts product from a horizontal infeed on one side, discharges to a horizontal outfeed at the target elevation. C-flow keeps infeed and outfeed on the same side; Z-flow puts them on opposite sides. PLC matches carrier timing to your line speed.

Handles Boxes, Cartons, Cases & Pallets

Built for unit loads — packaged products with defined dimensions and weight, not bulk material (that's the bucket elevator). Cartons, totes, cases, kegs, drums, trays, and pallets up to several thousand kilograms. Same family handles light cartons or heavy pallets — only the specs change.

Steel or Stainless Steel — Built to Your Product

Steel powder-coated frame for general industrial use — logistics, warehousing, packaging. SS 304 for food and beverage washdown lines. SS 316 for aggressive cleaning chemistries and pharma. Carrier, frame, and any product-contact surface can each be specified independently.

Custom-Engineered to Your Product — Not a Catalog Box

Every unit is sized to the specific load — carton dimensions, weight, throughput, elevation change, and upstream and downstream conveyor interfaces. Send us your load spec and the conveyor lines you need to connect — we engineer one that drops into your line and synchronizes from day one.

Configurations

Two Vertical Conveyor Types — Continuous or Reciprocating

The right configuration depends on throughput and load weight. Continuous (CVC) gives you the highest throughput for light to medium unit loads in a non-stop loop. Reciprocating (RVC) gives you heavy load capacity and cost efficiency with a platform that cycles up and down between elevations. Pick based on what your line actually needs to move.

Continuous Vertical Conveyor (CVC)

A series of carriers travels continuously in a non-stop loop between two vertical chains or belts. Product enters horizontally from an infeed conveyor at the lower elevation, rides one carrier up to the discharge point, and exits horizontally onto the outfeed conveyor at the target elevation — the next carrier picks up the next product without ever stopping. Best for high-throughput packaging and distribution operations moving boxes, cartons, cases, totes, and lighter unit loads (typically up to 100 kg per carrier). C-flow layout has infeed and outfeed on the same side; Z-flow has them on opposite sides. Throughput from a few hundred to several thousand units per hour, depending on speed and carrier spacing.

Request Technical Data Sheet →

Reciprocating Vertical Conveyor (RVC)

A single lifting platform cycles up and down between elevations — product loads onto the platform at one level, the platform lifts (or lowers) to the target level, product unloads, and the platform returns for the next cycle. Lower throughput than continuous but handles much heavier loads: single or multiple pallets, drums, large machinery, oversized cartons, and unit loads in the 500 kg to 4,000 kg range, with heavy-duty configurations rated higher. Simpler mechanism than continuous, lower equipment cost, and more flexible for multi-level applications where the platform stops at three or more elevations. Ideal where load weight matters more than peak throughput — pallet handling, drum movement, heavy carton transfers.

Request Technical Data Sheet →

Industries Served

Where the Vertical Conveyor Earns Its Place

Six industries where production or storage operations cross elevations daily — and where the vertical conveyor replaces the floor-space cost of ramps, the labor cost of forklifts, and the safety risk of manual carry, with an automated cell synchronized to the rest of the line.

Food Processing & Packaging

Packaged cartons and trays moving from production floors up to mezzanine packaging or down to outbound docks. SS 304 carriers and IP65 motors for washdown lines.

Logistics & Warehousing

Multi-floor distribution operations moving cartons up to pick lanes and pallets down to outbound docks. Reciprocating for the pallets, continuous for the carton flow.

Packaging & Carton Operations

Carton converters moving stacks from production presses up to inspection or storage, and finished pallets down to shipping. Continuous for the stacks, reciprocating for the pallets.

Beverage & Bottling Plants

Bottling-line cases coming off the packer, lifted to mezzanine storage or dropped to ground-floor docks. Built for thousands per hour. SS 304 for washdown.

FMCG & Personal Care

FMCG plants with production on one floor and packaging or warehousing on another — cartons flow between zones on continuous, palletized loads on reciprocating.

Assembly & Production Lines

Multi-level assembly — automotive, appliance, electronics — moving components up to assembly floors and finished units down to final pack. Synchronized to the horizontal line.

Why SANAM

The Conveyor Is Half
the Story. The Team Behind It
Is the Other Half.

Anyone can sell you a conveyor. The question is who picks up the phone six months later when a chain segment fails on a Sunday night.

Egyptian OEM, Not Importer

The conveyor is designed, fabricated, and assembled in our 10th of Ramadan facility — by the same team that installs and supports it. No middleman, no resold equipment, no relabeled imports.

Custom-Engineered to Your Line

We design around your factory floor, your existing fillers and packers, and your container specs. We don't sell standard parts hoping they fit — we design for your line.

Spare Parts in Egypt, in 48 Hours

Spares are typically available within 48 hours from our Egyptian inventory — no import waits, no customs delays, no production downtime while you wait for a chain segment from Europe.

Full System Integration

We don't just supply a conveyor. We connect it to your existing line — matching speed, height, and transfer geometry to your fillers, cappers, labelers, and packers. The line becomes one system, not a stack of disconnected machines.
